COURSER John Deere 2400 / 2500B / 2500E / 2550 / 2700 / 2750 22-Inch 11-Blade Cutting Unit Rebuild Kit – Complete 3-Head Set

A BIG SAVINGS compared with purchasing the included components separately.

This complete COURSER rebuild kit contains the main cutting and service components required to overhaul three compatible John Deere greens or fairway mower cutting heads fitted with 22-inch, 11-blade cutting units using the TCA19351-style reel.

The kit supplies three cutting reels, three standard-cut bedknives, bearing cups, bearing cones, reel seals, reel-bearing springs, retaining rings and bedknife bolt-and-nut sets for the complete three-head machine.

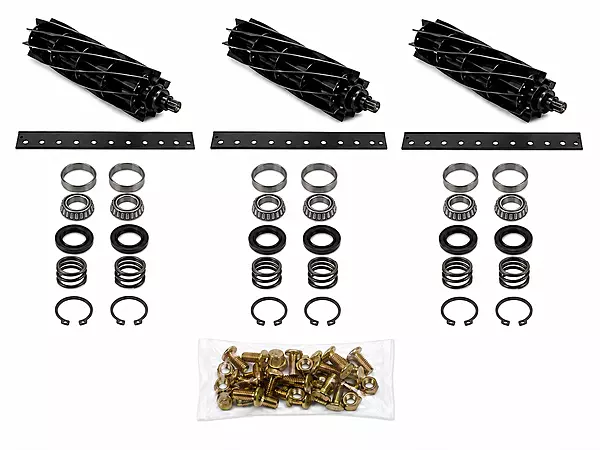

Kit includes

• 3 × AM19351 — COURSER 22-inch, 11-blade cutting reels
• 3 × AM17533 — COURSER 22-inch, 13-hole standard-cut bedknives
• 1 × AM19M7573+Nut 45-pack — John Deere M8 × 20 bedknife bolt-and-nut sets
• 6 × AM8226 — bearing cups, 2 per cutting head
• 6 × AM254-78 — bearing cones, 2 per cutting head
• 6 × AM14566 — reel seals, 2 per cutting head
• 6 × AM23880 — reel-bearing springs, 2 per cutting head
• 6 × R40M7226 — retaining rings, 2 per cutting head

The 45-pack of bedknife bolt-and-nut sets supplies the 39 sets required for the three 13-hole bedknives, with 6 spare sets included.

This is a complete three-head rebuild set, providing one reel, one bedknife, two bearing cups, two bearing cones, two seals, two springs, two retaining rings and the required bedknife fasteners for each cutting unit.

The 11-blade reel and standard-cut bedknife combination provides a reliable and practical setup for restoring reel operation, reel-to-bedknife contact and consistent cutting performance across all three heads.

Fits John Deere models including

When fitted with compatible 22-inch, 11-blade cutting units using reel reference TCA19351:

• John Deere 2400
• John Deere 2500B
• John Deere 2500E
• John Deere 2550
• John Deere 2550 E-Cut
• John Deere 2700
• John Deere 2700 E-Cut
• John Deere 2750
• John Deere 2750 E-Cut

Compatibility is determined by the cutting-unit configuration and existing reel arrangement, rather than the traction-unit model alone.

Important compatibility information

Before ordering, confirm:

• The cutting unit is 22 inches wide
• The existing reel matches reference TCA19351
• The cutting unit uses an 11-blade reel configuration
• The AM17533 bedknife matches the existing 13-hole mounting pattern
• The existing spline arrangement matches the supplied reel
• The bearing, seal, spring and retaining-ring arrangement matches the parts supplied

Check the existing reel part number, cutting-unit serial number and spline configuration before ordering.

This kit rebuilds a complete set of three cutting heads.

COURSER Premium guaranteed products are replacement parts designed to fit and replace corresponding OEM parts. OEM names, trademarks and part numbers are used for identification and compatibility reference only.
